OXY5S

APPLICATION FIELDS

HEALTHCARE INDUSTRY:

MEDOXY Oxygen Machine can fully Meet the demand for oxygen in the following circumstances and offer you the real safe, effective and comfortable oxygen therapy.

  • Respiratory diseases, such as chronic bronchitis, bronchial asthma, emphysema, pulmonary heart disease, pneumoconiosis, silicosis and so on.
  • Cardio cerebral vascular diseases, such as high blood pressure, arteriosclerosis, coronary heart disease, myocardial infarction, heart rate disorder angina cerebral thrombosis, cerebral apoplexy, and so on.
  • Altitude stress and sickness, such as high-altitude pulmonary emphysema, high altitude cerebral edema, chronic altitude sickness.

Our specialties

  • Rapid Pressure Swing Adsorption (RDSA)-NASA derived technology.
  • Purity of Oxygen accords with the Medical Standards.
  • Comes with Oxygen Purity Indicators. (Optional)
  • No. Other Raw Material required except Air.
  • Adjustable Flow Meter with 0.5LPM Variation.
  • In Built device For Nebulizing Therapy. (optional)
  • Low Power Consumption with uninterrupted flow of oxygen (24x7).
  • Humidifier with Safety Value with Audible Alarm in case of Obstruction.
  • Built-in Temperature Control for working art very cold climate.
  • Oil Free Compressor with Auto Shutdown Alarm.
  • Crush Proof Tubing Provided.
  • Quiet Unit- Allowing Restful Sleep to the Patient
Thumb

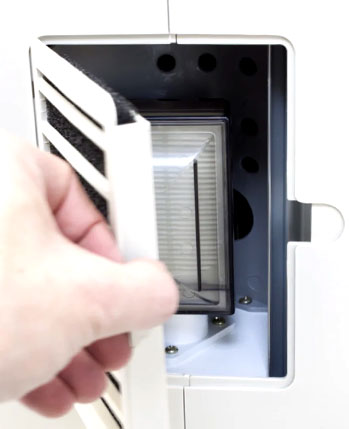

Inlet Filter
Thumb
Oxygen Tube
Thumb
Bacteria Filter
Thumb
Humidification Bottle

Specification


Flow Rate : 0 to 5 LPM (adjustable)
Oxygen Concentration : 93% ± 3% Approx.
Oxygen Delivery Pressure : 6.00psi to 10.15psi
Power Supply : 220 ± 10% VAC; 50Hz; 2.0 Amp.
Sound Level : < 45db (A)
Power Consumption : 380 Watt Approx
Alarms : Low/High Pressure & Power Failure, High Temperature Oxygen, Purity Indicator (Optional)
Size : 600(H)x380(W)x350(D) in mm
Weight : 22.0 kgs
Operating Temperature : --25°C to 50°C
Filter : Cabinet, Compressor, Inlet, Bacterial, Coarse
Others : In built Therapy
