SPIRO SENSE

Spiro Sense

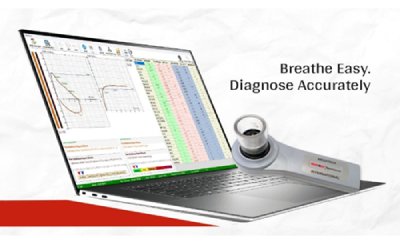

SpiroSense is a PC-based diagnostic spirometer device designed for accurate pulmonary function testing. It utilizes a bi-directional turbine sensor, ensuring precise airflow measurement with minimal resistance and is easy to disinfect. The device provides real-time data visualization on a computer, making it ideal for clinical and research applications. Its digital integration allows for seamless patient data recording, analysis, and reporting, enhancing diagnostic efficiency. The bi-directional turbine technology ensures high sensitivity and reliability, making SpiroSense a valuable tool for respiratory assessment.

Diagnose Differentiate
  • Bronchial Asthma
  • COPD (Chronic Obstructive Pulmonary Disease)
  • Screening of high-risk individuals (Smokers and Exposed to indoor or outdoor pollution)
  • Asthma or COPD.
  • Restrictive or Obstructive disease.
  • Pulmonary or Cardiopulmonary disease.
  • Degree of Diseases (Mild, Moderate & Severe)

Features Software
  • Best maneuver selection
  • Graphical & Tabular Pre / Post Test Comparison
  • Facility to search the Patient-by-patient Name, ID
  • Facility to take up to 10 tests of a particular patient
  • Facility to see trend's graph with Tabular result values
  • Facility to print the data in different formats as per the user's need
  • Predicated equation builder is provided to add/ edit the equation
  • User friendly window for fast operation

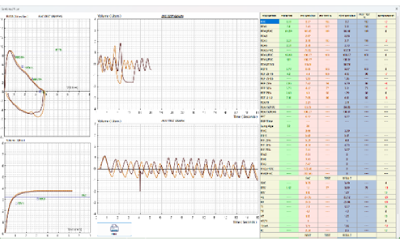

  • Flow - Volume/ Volume-Time Graphs
  • Pre and Post Bronchodilation test
  • Trends
  • Data Base
  • Interpretation
  • Doctor's Notes
  • Ethnic corrections
  • Pediatric incentives
  • Lung Age Calculation
  • Indian Predicted Equations Severe)

STANDARD ACCESSORIES
SpiroSense Hand set Carrying Case
Turbine Transducer User Manual
Reusable Mouth Pieces SpiroSense Software CD
Disposable Mouth Pieces Nose Clip
USB Cable
TECHNICAL SPECIFICATIONS OF SPIROSENSE

GENERAL DISPLAY TECHNICAL FEATURES
Weight (gm) Dimensions (mm) Screen Resolution < 117 gm (approx.) 163(L)*38(W)*25(H) 1920 x 1080 and above Tests Performed FVC, SVC, MVV
MEASURING RANGE DIFFERENT TEST PARAMETER MEASURES
Air Flow Range Max. Volume Range Measuring Accuracy (%) Calibration +16 L/sec to -10 L/sec 0 - 8 Liters within +- 1% Using a 3.0L calibrated syringe
TECHNICAL SPECIFICATIONS
Flow Detection
Transducer
Turbine Sensor
Sensor		 Volume Differential Bi-directional Turbine Type Cartridge
Infrared Interruption (Transmitter/Receiver)
Infrared Emitting Diode,
Infrared Photo Transistor
 FVC FVC (L), FEV1(L), FEV.5(L), FEV.75(L), FEV3(L), FEV6(L), PEFR(L/s), FEV.5/FVC(%), FEV1/FVC(%), FEV3/FVC(%), FEV6/FVC(%), FEV1/FEV6(%), FEV.5/FVC(%), FEV.75/FEV6(%), FIV.5(L), FIV1(L), FIV3(L), FIVC(L), PIFR(L/s), FIF25%(L/s), FIF50%(L/s), FIF75%(L/s), FEF25%(L/s), FEF50%(L/s), FEF75%(L/s), FEF25- 75(L/s), FEF75-85(L/s), FEF.2- 1.2(L/s), FEV.5/FVC(%), FET(s), Expel Time, Lung Age(Yr.), FIVC(L), FIV.5/FIVC(%), FIV1/FIVC(%), FIV3/FIVC(%)

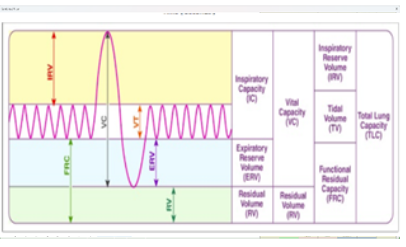

Power Supply Powered Via USB SVC SVC, ERV, IRV, VE, Rf, Ti, Te, VT, VT/Ti, Ti/T total , IC
OPERATING CONDITIONS/ENVIRONMENT
Operating Temperature Relative Humidity Storage Temperature: 0oC to 45oC 5% to 95% RH (Non-Condensing) 0oC to 55oC
 MVV MVV, MRF, Ti, TE, TE/Ti.
GREQUIRED HARDWARE CONFIGURATION
Operating System Windows 7/8/10 and/or above
Processor i3 (2.5 GHz and/or equivalent)
RAM 4 to 8 GB
Storage 120 GB and above

*Specifications are subject to change without prior notice
ABBREVIATIONS USED:
FVC- Forced Vital Capacity
SVC- Slow Vital Capacity
MVV- Maximum Voluntary Ventilation
